BIG BREEZE, TOUGH BUILD

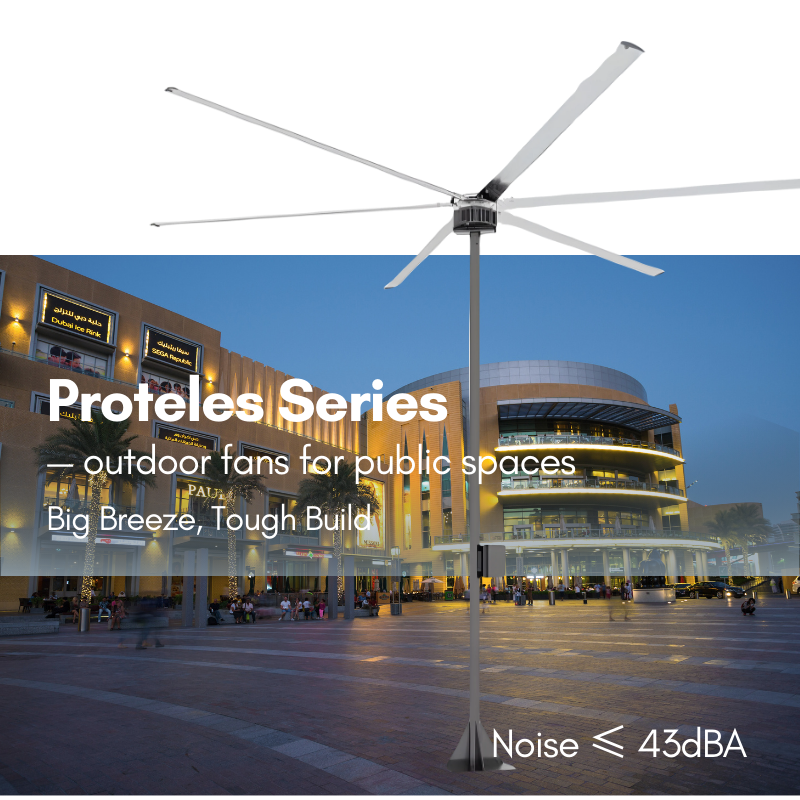

PROCANIX Proteles is an outdoor PMSM HVLS upright fan engineered for plazas, commercial courtyards and open-air venues — delivering quiet, low-speed/high-volume airflow across large outdoor spaces with durable, low-maintenance components, striking umbrella-style aesthetics, and project-ready customization for lighting, signage and seating features.
KEY FEATURES & ADVANTAGES
- Sizes: 10 / 12 / 14 / 16 / 18 ft — 6-blade configuration.
- Motor & bearings: PMSM permanent-magnet motor (180°C magnet rating) with NSK bearings — high start torque, fast start, strong overload; gearless, oil-free.
- Durability: High-IP motor, IP54 VFD, steel 90# pole with special coating — long corrosion resistance.
- Blades: Patented 6063-T5 aluminum blades with ribbed internal structure and T5 coating — lightweight, strong, anti-fatigue.
- Controls & support: VFD control with protection features (overload/surge/phase-loss), optional lighting/signage, OEM/customization, distributor pricing protection and 3-year mechanical warranty.
High IP Rating PMSM Motor
3-Year Warranty & Installation Support
7–14 Day Lead Time
Comprehensive Safety & Fault Protections
Certifications & Custom Integration
TECHNICAL SPECIFICATIONS
| Model | Fan Blade Diameter (ft/m) | Motor Power (KW) | Available Input Supply Voltage (AC) | Current (A) | Air Volume (m³/min) | Speed (RPM) | Noise (dBA) | Fan Weight (KG) |
| PROCANIX-PT-0.75-5.5 | 18ft (5.5m) | 0.75 KW | 1PH / 3PH
200-240V / 380-480V
50 / 60HZ | 220V (2.5A) | 10,500 | 0-60 | 43 dBA | 100 kgs |
| PROCANIX-PT-0.75-4.9 | 16ft (4.9m) | 0.75 KW | 220V (2.3A) | 9,500 | 0-75 | 43 dBA | 92 kgs | |
| PROCANIX-PT-0.4-4.2 | 14ft (4.2m) | 0.4 KW | 220V (2A) | 8,500 | 0-70 | 43 dBA | 80 kgs | |
| PROCANIX-PT-0.4-3.6 | 12ft (3.6m) | 0.4 KW | 220V (1.8A) | 8,000 | 0-80 | 43 dBA | 72 kgs | |
| PROCANIX-PT-0.4-3 | 10ft (3m) | 0.4 KW | 220V (1.7A) | 7,000 | 0-90 | 43 dBA | 65 kgs |
WHERE HVLS FANS WORK BEST (For Outdoor Places)
- Outdoor Dining Patios & Beer Gardens
Why: Creates comfortable, dispersed airflow for diners, helps evaporate sweat, reduces insect nuisance near food, and can lower perceived temperature without heavy AC. - Open-Air Sports Courts, Tennis Courts & Stadium Concourse Areas
Why: Keeps players and spectators cooler, disperses sweat/heat during events, and improves spectator comfort in circulation areas. - Loading Yards, Truck Bays & Logistics Yards
Why: Moves large volumes of air to reduce heat build-up around parked vehicles and workers, aids in drying and odor dispersion in open staging areas. - Outdoor Car Dealership Lots / Open-Air Service Forecourts (Automotive)
Why: Improves customer comfort during browsing, helps dry vehicles after wash, and disperses exhaust/odours in service forecourts. - Theme Parks, Outdoor Queue Lines & Festival Grounds
Why: Reduces heat stress in slow-moving queues, improves guest comfort in shaded plazas, and lowers complaints during peak crowds. - Livestock Holding Areas, Open Feedlots & Poultry Yards
Why: Gentle, consistent airflow reduces animal heat stress, improves air quality by diluting ammonia/dust, and enhances overall animal welfare outdoors.
WHAT'S INCLUDED
- All Installation Fasteners
- With Steel Design Pole
- A Variable-Speed Wall Controller

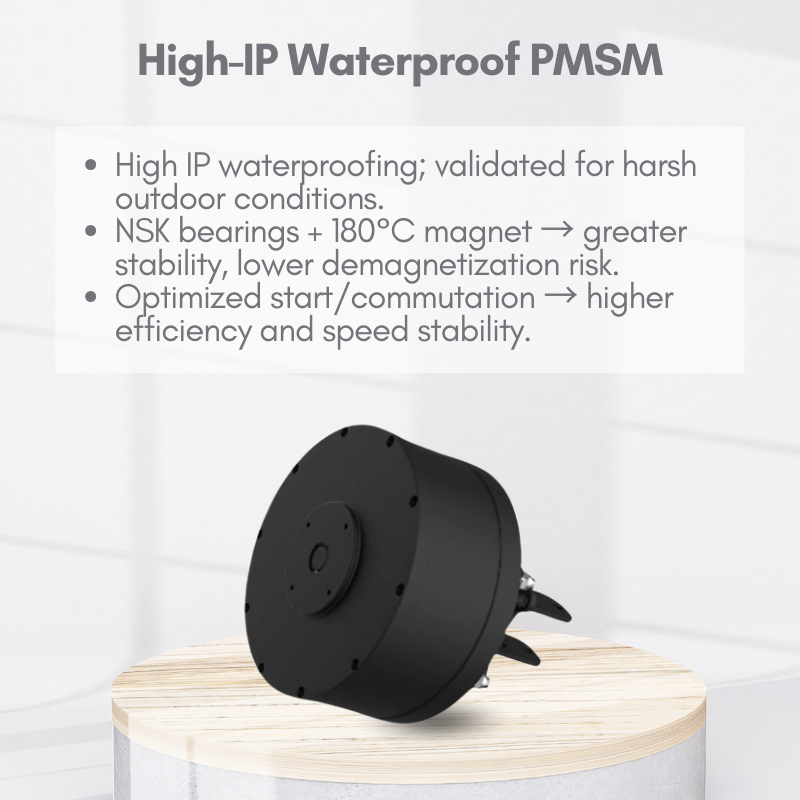

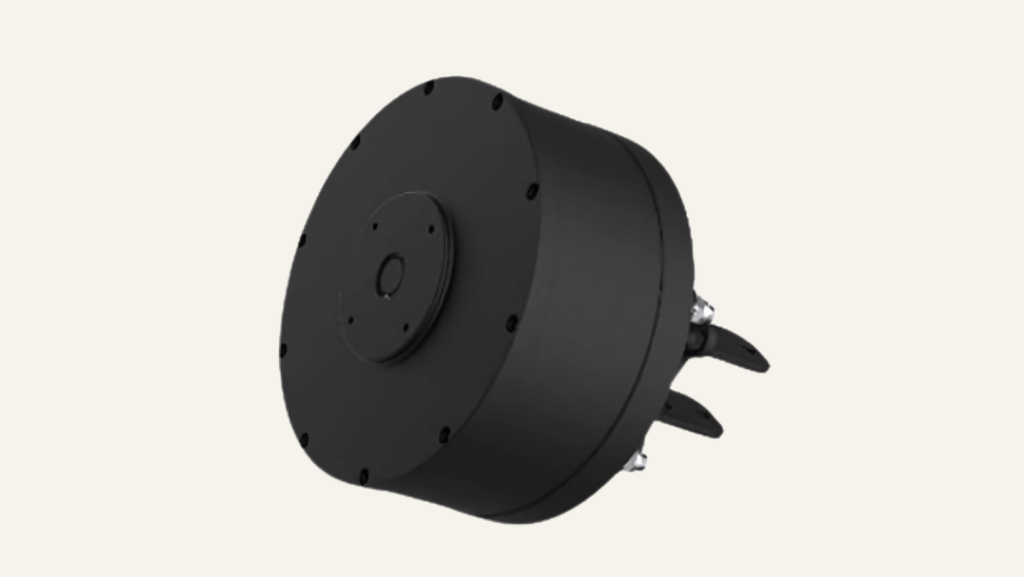

Industrial-Grade Motor — Big Start, Steady Punch
High-IP PMSM with NSK bearings and NdFeB magnets rated to 180°C for stable speed, lower power draw and reduced demagnetization risk. Uses a military-grade domestic permanent-magnet motor platform to deliver big starting torque, fast spin-up, strong overload tolerance, low noise and high efficiency—ideal for continuous outdoor duty.

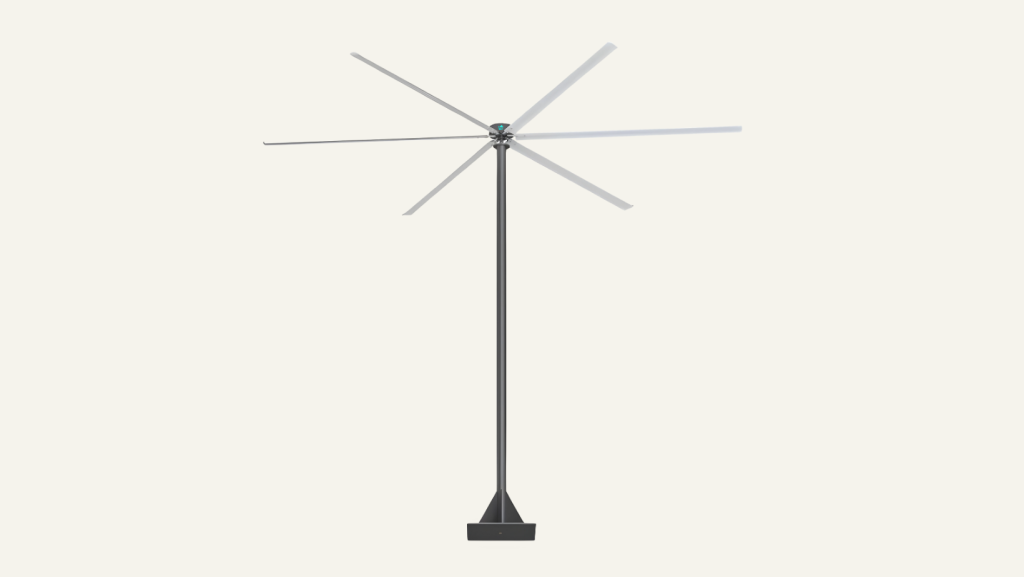

Paint Pole (Stylish, Built To Last)
Steel pole built from 90# tube with a special long-life paint process; surface finish resists corrosion for 20+ years and keeps the structure tough (no brittleness). Poles can be fitted with lights and customized trim; the fan’s umbrella-style silhouette accepts optional add-ons like signage, lighting, bars or seating to blend with venue aesthetics.

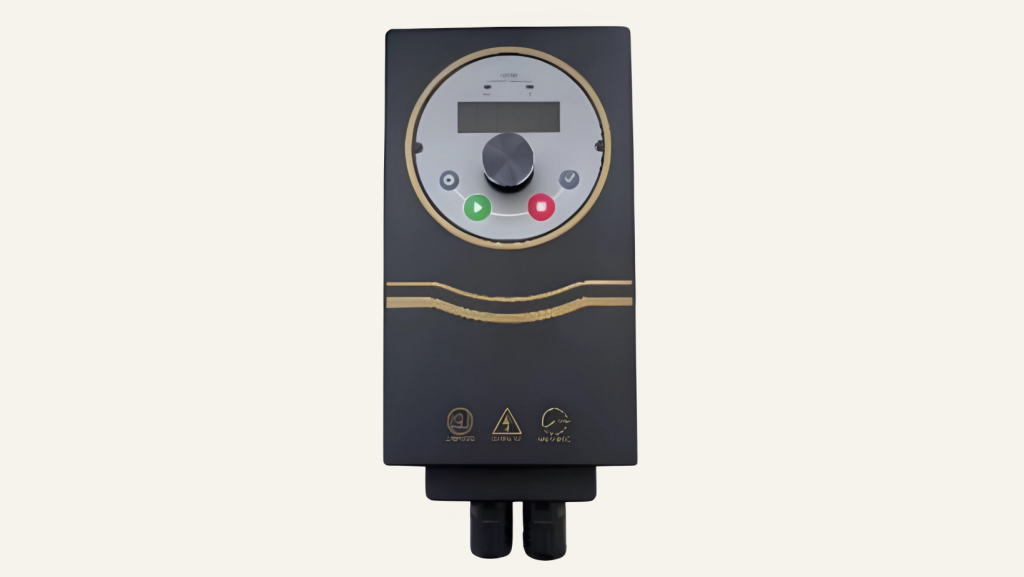

Drive & Control — Easy Integration, Smart Protection
IP54 inverter/enclosure comes with start/stop buttons, stepless speed knob, indicator lights and protections such as overload, voltage surge and phase-loss protection. Designed for straightforward setup and safe operation in outdoor contexts—plug into site controls or run locally for fast commissioning.

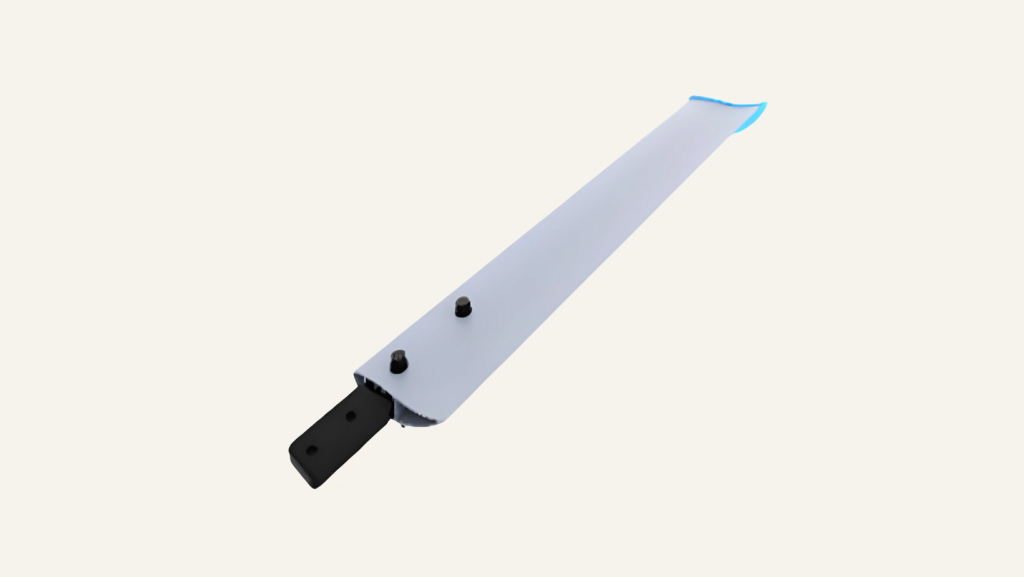

Patented Wing System — Light, Strong, Efficient
Six blades in 10/12/14/16/18 ft sizes, blue-grey finish. Blades use 6063-T5 aluminum (tensile 215 MPa, yield 160 MPa, elongation 15%, Brinell ~60 HB, shear ~150 MPa) with patented geometry tuned by momentum theory. Internal structure: two connected “E” ribs plus four independent ribs for low weight, high strength and controlled flex during clamp-up so bolts seat without cracking. T5 heat-treatment + coating prevents tip sag and fatigue — big sweep, premium look.

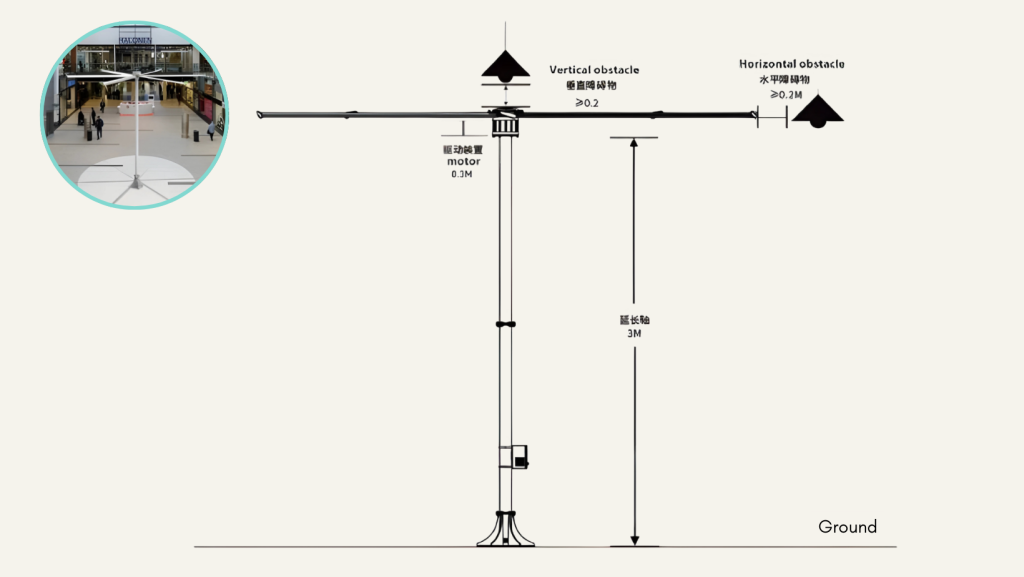

Installation & Maintenance — Fast, Safe, Low Upkeep
Multi-point mounting reduces vibration and improves balance; the whole design avoids traditional gearbox/oil routines—no greasing, no gear oil changes, no exposed cooling vents. Built for harsh outdoor environments with sealed motor and simplified service. Backed by a 3-year mechanical warranty and engineered for quick, dependable installs in plazas and commercial sites.
