BIGGER AIRFLOW. LOWER COST.
PROCANIX’s Uncia is a flagship, in-rotor PMSM HVLS ceiling fan engineered for 4–20 m high spaces; built for maximum airflow, quiet energy-efficient operation, low-maintenance duty in harsh environments, and turnkey integration with BMS and project requirements—making it the go-to choice for large industrial, commercial and agricultural installations.
KEY FEATURES & ADVANTAGES
- Engineered for 4–20 m ceilings — optimized coverage for very tall spaces.
- PMSM in-rotor design — gearless, oil-free, low maintenance.
- Five size options (14–24 ft) with 5/6-blade choices for precise coverage.
- IP64 protection — built for harsh and outdoor environments.
- Patented blade geometry + 6063-T5 aluminum — high airflow, light weight, corrosion resistance.
- Multi-point mounting & robust clamps — low vibration, high installation safety.

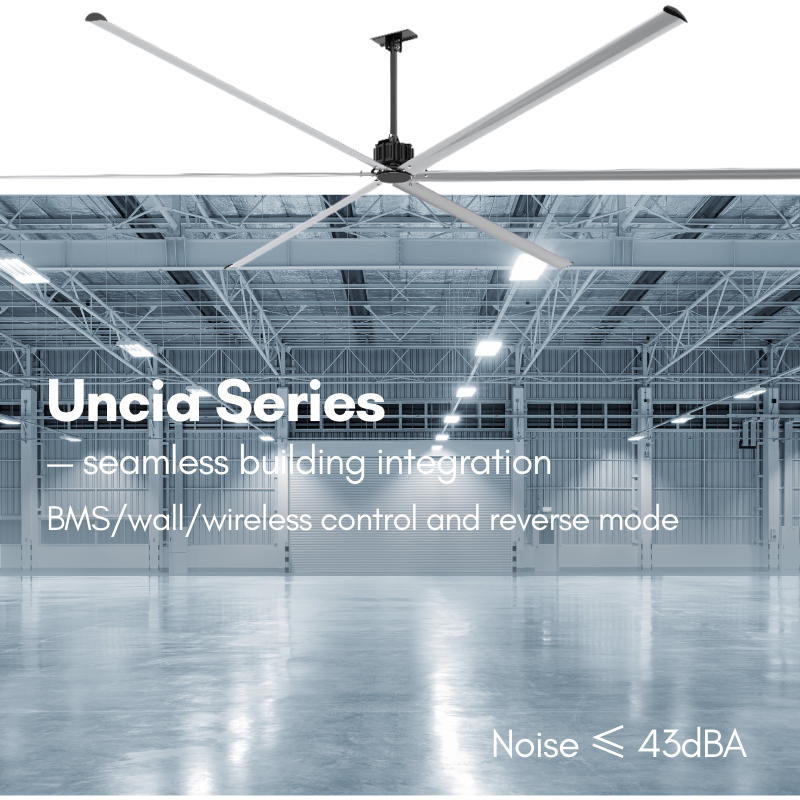

- BMS/wall/wireless control and reverse mode — seamless building integration.
- Certified safety & guaranteed uptime — multi-alarm protections, global certifications, 3-year mechanical warranty.
IP64 PMSM Motor
3-Year Warranty & Installation Support
7–14 Day Lead Time
Comprehensive Safety & Fault Protections
Certifications & Custom Integration
TECHNICAL SPECIFICATIONS
| Model | Fan Blade Diameter (ft/m) | Motor Power (KW) | Available Input Supply Voltage (AC) | Current (A) | Air Volume (m³/min) | Speed (RPM) | Noise (dBA) | Fan Weight (KG) |
| PROCANIX-UC-1.5-7.3 | 24ft (7.3m) | 1.5 KW | 1PH / 3PH
200-240V / 380-480V
50 / 60HZ | 220/380 (4.6/2.7A) | 16,000 | 0-53 | 43 dBA | 122 kgs |
| PROCANIX-UC-1.2-6.1 | 20ft (6.1m) | 1.2 KW | 220/380 (4.1/2.4A) | 15,100 | 0-60 | 43 dBA | 102 kgs | |
| PROCANIX-UC-1.2-5.5 | 18ft (5.5m) | 1.2 KW | 220/380 (3.9/2.3A) | 13,800 | 0-65 | 43 dBA | 92 kgs | |
| PROCANIX-UC-0.75-5.5 | 18ft (5.5m) | 0.75 KW | 220/380 (3.1/1.8A) | 12,000 | 0-70 | 43 dBA | 75 kgs | |
| PROCANIX-UC-0.75-4.9 | 16ft (4.9m) | 0.75 KW | 220/380 (3/1.7A) | 11,000 | 0-80 | 43 dBA | 72 kgs | |
| PROCANIX-UC-0.75-4.2 | 14ft (4.2m) | 0.75 KW | 220/380 (2.8/1.5A) | 10,000 | 0-90 | 43 dBA | 67 kgs |
WHERE HVLS FANS WORK BEST (4–20 M)
- Warehouses & Distribution Centers
Why: Large floor area and high ceilings benefit from strong, low-speed airflow to reduce stratification, improve worker comfort, and lower HVAC runtime. - Manufacturing / Production Plants
Why: Moves stale or hot air away from workstations, evens temperature across production lines, and can cut localized cooling/heating costs. - Automotive Workshops, Service Centers & Showrooms ← (automotive-related)
Why: In repair bays and showrooms, HVLS fans quickly improve perceived comfort, disperse fumes/odours, and aid ventilation without dramatic power draw. Low mounting (near 4–6 m) still effective. - Livestock Barns & Agricultural Facilities
Why: Strong, gentle airflow reduces heat stress for animals, improves air quality by moving ammonia/dust, and helps humidity control. - Sports Halls, Gyms & Event Spaces
Why: Large open volumes need consistent airflow for spectator/athlete comfort and to control humidity during high-occupancy events. - Aircraft Hangars & Large Maintenance Facilities
Why: Very tall, wide spaces benefit from HVLS fans to mix air, reduce stratification, and support worker comfort during long maintenance tasks.
WHAT'S INCLUDED
- All Installation Fasteners
- One Mounting-Fixture Kit (I-Beam / Angle Iron / Concrete Beam)
- An Extension Tube, Standard Lengths: 1m, 1.5m, 2m — Custom Lengths Available On Request.
- A Variable-Speed Wall Controller
SUPPORTED OPTIONS
- Works With BMS (Building Management Systems)
- Reversible Fan Mode
- Built-In Temp And Humidity Control
- Centralised Control
- Remote Control
Industrial-Grade Motor — Quiet Power, Built To Last

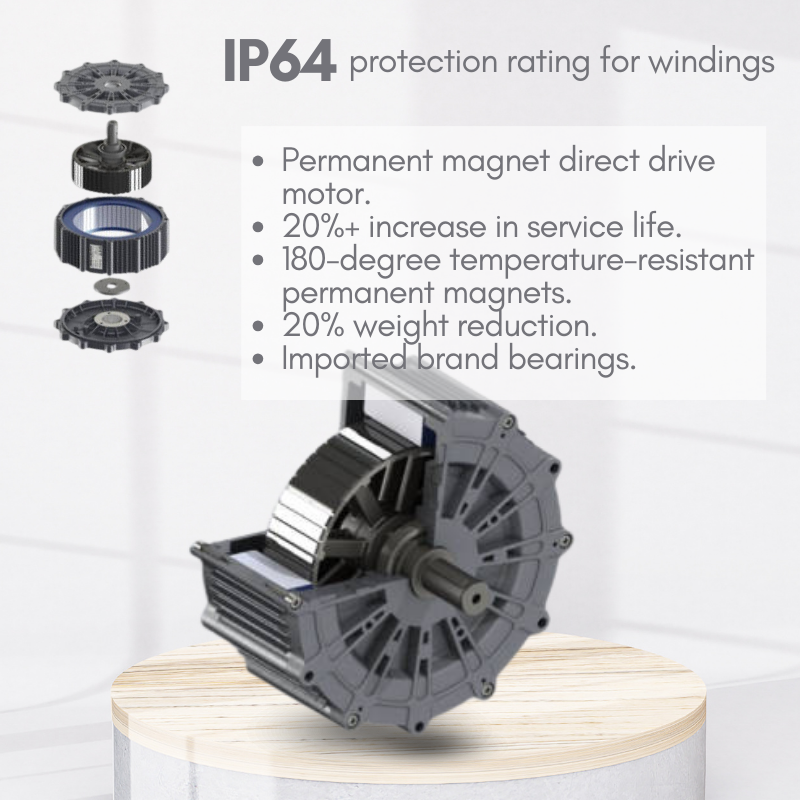

Inner-rotor permanent-magnet synchronous motor (PMSM) delivers huge airflow at low RPM for big spaces (4–20 m ceilings). Embedded NdFeB magnets and an oil-free, sealed motor design remove the old lubrication headaches. Result: strong, whisper-quiet performance with less wear — ideal for factories, warehouses and barns.
Low-Cost Maintenance & Rock-Solid Reliability
No gearbox oil changes, no exposed cooling vents, and fewer moving parts cut routine service and downtime. Three-year mechanical warranty and multi-alarm protections (over-temp, ground fault, phase loss, over/under voltage, short circuit) keep operations safe and predictable. For distributors: fewer service calls, happier end customers.
No-Gear Drive & Simple Control Integration
Gearless drive and a compact inverter box support multiple inverter brands (domestic options, Danfoss/Schneider) and include EMI suppression and braking. Built-in status window, indicator lights, stepless speed knob plus three-speed switch — or hook into BMS for centralized control. Wall control and optional remote make end-user setup painless.
Patented Blade Aerodynamics — More Airflow, Less Weight
Blade profiles were optimized with momentum theory and CFD-led refinement; actual dimensions are patented. Hollow internal ribs (two connected “E” ribs + four independent ribs) keep each blade light yet tough — they flex slightly under clamp load to seat perfectly without cracking. Outcome: efficient, durable blades that look sharp and perform better.
Fast, Safe Installation — Engineered For Tough Sites
Multiple mounting points and heavy-duty clamps (8 mm plates, robot-welded bends) ensure balance and reduce vibration. Aviation-grade steel cables, fire relays, and IP64 protection across the whole fan system make it suited for dusty, wet or harsh environments. Mounts fit I-beams, concrete beams and angle steel — installers appreciate fewer surprises and faster sign-offs.
Project Support & Customization That Sells
Sizing CFD, tailored OEM options, BMS/temperature/humidity add-ons, reverse-function kits and region-specific certifications (CB, CE, EMC, ICE, ISO, UL) make the Uncia easy to spec into projects. A distributor-friendly pricing policy and flexible OEM packages protect territory margins and accelerate rollouts — perfect for regional campaigns or big tender wins.
Need a breath of fresh air for your space?
A short chat clears things up: coverage, energy wins, and install needs. Follow-up quote arrives pronto.
